Thin film coatings are essential components of modern optical systems. For decades, the methods available for depositing these coatings have defined the boundaries of what is possible in precision optics. Physical Vapor Deposition (PVD) stands as the central process in this technological evolution. Its development chronicles how the industry consistently elevates standards for film quality, durability, and repeatability.
Where It All Began: Thermal Evaporation
Thermal resistance-heated evaporation was the first widely adopted PVD method for optical coatings. A restively-heated source evaporates specific materials that condense and grow as thin solid layers on optical substrates. This approach is straightforward and cost effective.
However, films deposited this way often have a porous, low-density structure that renders the films vulnerable to instability with environmental exposure. For example, moisture absorption can shift the optical and mechanical performance over time.
While deposition rates are high, controlling film uniformity and repeatability is difficult. This method suits lower complexity coatings and high-volume runs where extreme precision optics are not the primary application.
Introduction of Electron Beam Evaporation
Electron beam (e-beam) evaporation provided a significant upgrade. It replaces the resistive heating evaporation with a focused electron beam. This technique enables the vaporization of high-melting-point metals and oxides that thermal sources cannot handle.
The expanded list of usable materials gave optical coating engineers access to refractory metals and complex compound oxides, facilitating more complex multilayer designs. It remains a practical choice for antireflective coatings and moderately complex mirror stacks today.
Energetic Deposition Begins: Ion Assisted Deposition (IAD)
The ability to satisfy demands for more durable and stable multi-layer coating applications required evolution from low-energy processes such as resistance-heated evaporation to e-beam evaporation. The integration of Ion Assisted Deposition (IAD) with resistance-heated e-beam systems marked the next major step in increasing deposition energy.
In this process, a separate ion source directs a stream of high-energy ions (such as argon or oxygen) at the substrate and the growing film. This consistent bombardment imparts energy, increasing the kinetic energy of the condensing atoms and significantly densifying the film structure as well as increasing adhesion strength.
This process substantially reduces film porosity, leading to better environmental stability (less moisture absorption) and a higher laser damage threshold. IAD made possible the fabrication of highly durable, stable, and spectrally precise optical coatings, required to meet the performance demands of applications like high-power lasers and space precision optics.
IAD was also the first energetic deposition technology to achieve widespread industrial use. The ability to retrofit it into existing evaporation systems lowered the barrier to adoption.
Ion-Beam Sputtering (IBS) Raises the Precision Optics Standard
For the most demanding applications in precision optics, Ion Beam Sputtering (IBS) represents the current pinnacle of PVD technology. Unlike IAD, which combines evaporation with separate ion bombardment, IBS utilizes a focused high-energy ion beam to physically sputter material from a target.
This sputtered material then condenses on the substrate as an extremely dense, smooth film. The kinetic energy of IBS deposited particles is approximately ten times higher than that from magnetron sputtering or standard evaporation. This creates films with void free microstructure, precise refractive index control, and extremely low scatter. These properties are essential in laser systems, aerospace sensors, and high precision optics imaging components.
The necessary tradeoff is throughput; IBS operates at lower deposition rates and involves higher system costs. However, in sectors where film quality is non-negotiable, this tradeoff is fully justified.
Plasma-Ion Assisted Process (PIAD)
Another high-energy assist process uses a separate source that produces a high current density of ions that fill the chamber. In contrast to the focused beams of IAD and IBS, more complete coverage of the tooling and optical parts is provided. The result is uniform, dense, fully oxidized, adherent film properties over a large area.
Build the Right System for Your Production Process
The evolution of PVD technology reflects a clear industry trend: greater energy control, denser films, and tighter process repeatability. Selecting the correct deposition technology requires careful evaluation of your specific optical requirements, substrate materials, production volumes, and performance specifications.

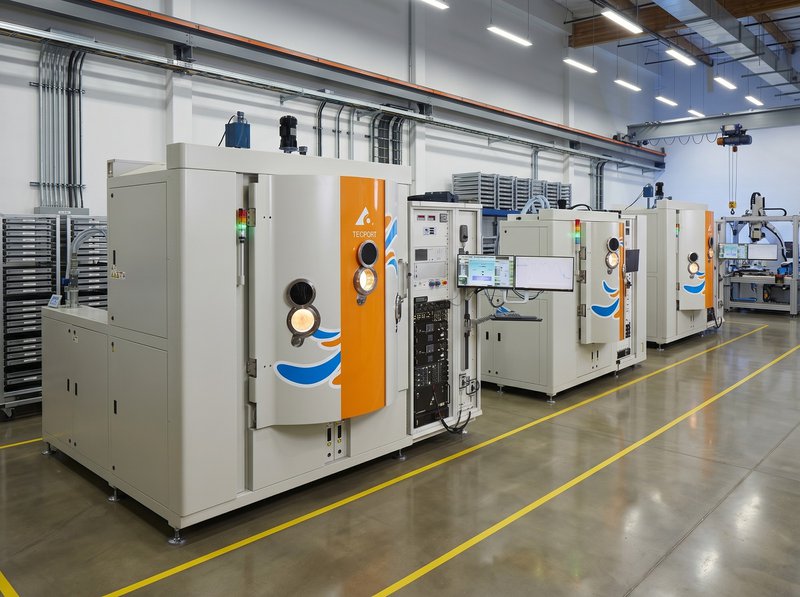

At Tecport Optics, we design and manufacture thin film vacuum deposition systems across the full PVD spectrum.
Our Symphony Precision platform is adaptable to multiple evaporation techniques that can include IAD, IBS, and PIAD aids, all within a single, configurable system. If you are considering your next coating system or looking to upgrade your current process, reach out to the Tecport Optics team. We will help you match the right technology to your application.
