High-reflector mirrors are fundamental components in high-energy laser systems, precision interferometry, and advanced imaging platforms and low light level optics. Spectral reflectance efficiency, energy density, wavelength coverage and environmental exposure durability determine the design choice between a metal-based reflector and a multi-layer dielectric design.
Whether meeting broadband requirements with metallic films or pushing the limits of reflectance with dielectric interference, engineers must align their deposition technology with specific optical coating performance demands. This article explores the trade-offs between metallic and dielectric stacks to help you specify the high-reflector design type and production solutions to meet the requirements.
High-Reflector Fundamentals in Optical Coating
High-reflector mirrors are specialized optical surfaces designed to maximize the return of incident light. Standard performance targets involve achieving reflectance levels above 95% for broadband imaging and exceeding 99% for laser-specific applications. These mirrors are primarily categorized by their construction: metallic mirrors utilize a single thin film to provide broad spectral coverage, while dielectric mirrors leverage multi-layer thin-film interference. By depositing alternating high and low-refractive-index layers at precise quarter-wave thicknesses, dielectric designs ensure reflected beams add together constructively.
While dielectric stacks can reach extreme reflectance values surpassing 99.999% at target wavelengths, they are limited to narrower bandwidths. In contrast, metallic mirrors provide a simpler, more versatile solution for broadband requirements, though they cannot match the peak reflectance of a tuned dielectric stack.
Metal Mirror Materials: Silver, Aluminum, and Gold
The performance of different metallic coatings varies significantly across the electromagnetic spectrum. The selection of silver, aluminum, or gold is determined by the required reflection performance. For instance, a gold mirror allows a mid-wave infrared detector to capture significantly more signal than an aluminum alternative.
Silver is the most reflective metal in the visible spectrum, reaching up to 95% reflectance from approximately 450 nm to 2000 nm. It is the preferred choice when broadband visible and near-infrared performance is critical. Silver’s vulnerability to corrosion in exposure to atmospheric gases requires protective over-coating layers. Materials and deposition parameters are critical components to achieve long-term environmental survival.
Aluminum reflects roughly 88 to 92% across the visible and UV, ranges providing an advantage over silver. Aluminum is the only mirror metal with high UV reflectance to ~200nm, making it the standard for Vis-UV sensors and broad-spectrum reconnaissance systems.
Gold is the preferred mirror metal for thermal imaging and infrared seeker systems. Gold has poor reflectance below 600 nm. Its softness and vulnerability to scratching requires dielectric overcoating. Dielectric protected gold mirrors deliver 94 to 98%+ reflectance from ~700 nm to >20,000 nm.
Protected vs. Enhanced Metallic Mirrors
To address the vulnerabilities of bare metal, engineers utilize two primary optical coating strategies: protection and enhancement.
Protected metallic mirrors employ a singular, thin dielectric layer, often silicon monoxide (SiO), to insulate the metal from the environment. This overcoat provides essential moisture and corrosion resistance and improves mechanical durability while maintaining the metal's inherent spectral properties. This configuration is standard for defense components with limited exposure housed within controlled, sealed environments.
Enhanced reflectance metallic mirrors utilize a more complex multi-layer dielectric stack. This design does more than just provide mechanical protection, it increases reflectance within targeted spectral regions. For instance, enhanced aluminum can achieve over 96% reflectance in the visible spectrum, a significant increase from the ~88% for bare aluminum.
In summary, the primary differences involve:
- Environmental focus: Protected mirrors improve durability with very little change to the spectral profile.
- Performance optimization: Enhanced mirrors provide superior reflectance and protection, though they operate across a narrower optimized range.
Both configurations outperform bare metal in field environments involving humidity, thermal cycling, and mechanical contact.
Dielectric Stacks: Surpassing the Limits of Metal
Metallic coatings, even with advanced enhancements, eventually reach physical limitations that make them unsuitable for certain high-precision demands. Systems like gravitational reference sensors, ring laser gyros, precision interferometers, and high-energy lasers require highest reflectance and lowest absorption reflectance levels that metal mirrors cannot provide.
Dielectric stacks consisting of high-and low index layers can produce reflectances >99% over a limited bandwidth. An ideal application is to provide higher laser-induced damage thresholds (LIDT).

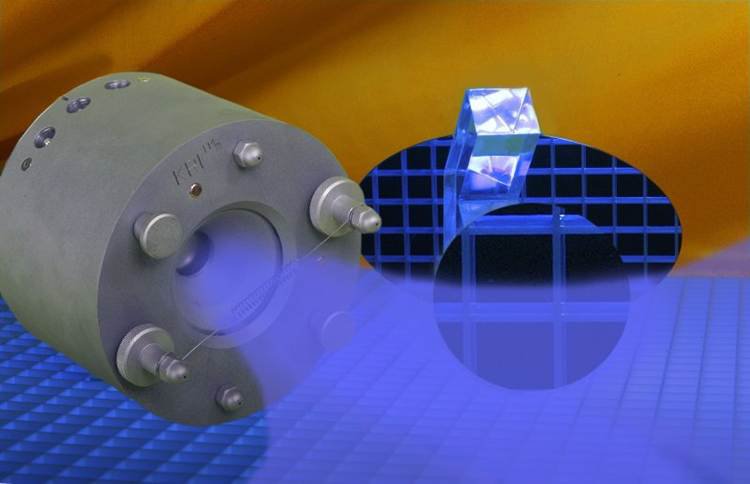

Dense, void-free layers are achieved through techniques like Ion-Assisted Deposition (IAD) or Plasma Assisted Deposition (PAD), which ensure stability by eliminating the porosity found in conventional coatings and producing high refractive indices and near-zero absorption.
However, these advantages come with specific constraints. The reflectance of all-dielectric mirrors is angle-sensitive, and their reflectance changes due to polarization separation. Increasing the number of layers to boost reflectance also increases absorption loss, lowering LIDT. Production of low absorbing dielectric mirrors with high LIDT is a specialized technology involving specialized high-purity materials and high-energy deposition processes.
Mechanical stress is another critical factor. Designers must carefully balance compressive and tensile stresses to prevent film buckling, cracking, or delamination, especially in environments with significant temperature fluctuations.
Due to these complexities, a metallic base paired with enhanced dielectric overcoats often remains the most efficient choice for systems operating across multiple spectral bands or requiring broadband performance in non-critical applications.
Developing a Customized Solution for Your System
Spectral range, laser energy and fluence, field environment, and aperture size all must be considered in the design and implementation of the coating system.
