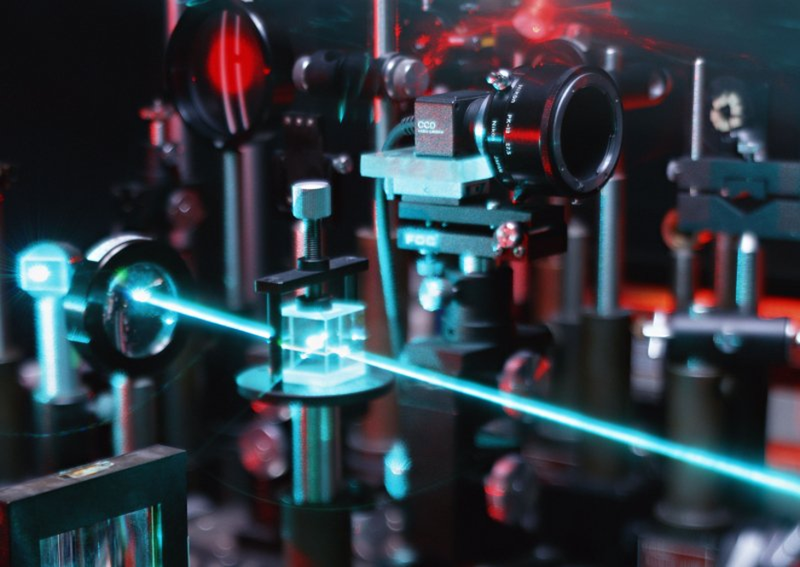

In precision optical engineering, controlling light is rarely about simply blocking or transmitting it; it’s about isolating the exact wavelengths required while eliminating noise. At the heart of this light-shaping capability are bandpass filters. Designed to allow a specific spectral band to pass through while reflecting or absorbing all other wavelengths, bandpass filters are used in applications including, but not limited to, medical analysis and diagnostics, environmental monitoring, fluorescence microscopy, LIDAR and telecommunications systems and military, entertainment and scientific imaging.
Bandpass filters define and isolate a specific band of wavelengths. Designs include reflection filters and longwave and shortwave pass designs. Spectral passband half widths ranging from nm to µm satisfy different applications. In addition to spectral width, filter performance includes several operational conditions. The passband requires a high level of rejection of out-of-band energy, operation at a variety of incidence angles and environmental influences.
Filter Design and Construction
Spectral filter manufacture requires accurate and precise control of thickness and refractive index to achieve the highest in-band transmission, a steeply sloped profile, accurate wavelength centering and high out-of-band rejection. Often a multiple resonant cavity Fabry-Perot design, using quarter wave High-and-Low optical thicknesses, will satisfy the band width requirement.
Refractive index ratio between the High- and-Low index layers might fortuitously produce the required narrow to medium bandwidth for these filter designs. Specific passbands and bandwidths for specific applications are constructed of a long-wave and a short-wave filter assembled to define a passband of the required width. The LWP and SWP edge-defining filters are based on quarter wave layers.
Whatever the design, thickness monitoring is essential for producing optical properties that meet required tolerances. Optical and crystal monitoring implemented in conjunction with deposition process achieve consistent layer-to-layer properties thickness and thus optimum filter performance. Optical monitors are used for filters at wavelengths <3000nm. Crystal monitors are used at longer wavelengths.
Thin film deposition systems for UV, Visible, NIR wavelengths are magnetron sputtering, Ion beam sputtering or plasma ion-beam processes. These high-energy deposition processes produce accurate, stable, low absorption layers. NIR to UV designs use oxide- compound materials. IR filters are constructed using semiconductors Ge, Si, ZnS, ZnSe and fluoride compounds and are deposited by thermal evaporation processes often aided by ion assist.
Advanced deposition methods such as Ion Beam Sputtering (IBS) and Plasma Assisted Deposition (PAD) are the industry standard for producing high-performance optical filters. IBS, in particular, delivers extremely dense, stable films with low scatter and low absorption, making it the preferred method for demanding spectroscopy and defense applications.
Specifying Bandpass Filters
Bandpass filters of any design and spectral region must be matched to the application and characteristics of the optical system in which they are employed. The following specifications are affected by and must accommodate by performance the parameters incidence angle, thermal and humidity environment and mechanical durability. In the case of laser applications, power density is added to that operational and survivability list.
Every bandpass filter is defined by three optical parameters:
- Center Wavelength (CWL): CWL is the wavelength at the center of the spectral bandpass. It calculated as the mean wavelength between the passband edges at the 50% of maximum transmittance (FWHM). Tolerances for precision filters can be as tight as ±1 nm.
- Full Width at Half Maximum (FWHM): This measures the width of the transmission band at 50% of peak transmission.
- Out-of-Band Blocking: This defines how well the filter suppresses unwanted wavelengths outside the passband. This is typically expressed in optical density (OD). Higher OD values indicate stronger rejection of stray light, which is critical in low-signal applications.
- Edge slope: The steepness of the transition of a band edge from low (often 5% transmittance) to 80% or 90% of max transmittance. Steep slopes are necessary to provide high isolation between two spectral features. Slope is determined by layer count and design.
Some Applications in Scientific Instrumentation
Examples of applications requiring precise bandpass filters:
- Imaging: medical, scientific, military: Specific spectral regions are isolated to enable diagnostic measurement or surveillance monitoring.
- Fluorescence Microscopy: Filters are required to isolate the stimulus light from the emitted signal in materials analysis, and in biological research, diagnosis and treatments scenarios.
Tight CWL tolerances and steep passband edges are essential here, as even slight spectral overlap can compromise measurement accuracy.
The combination of correct CWL, appropriate FWHM, and sufficient out-of-band blocking determines the reliability of results.
Build Your Bandpass Filters with Confidence
We have outlined the challenges associated with the challenges associated with depositing bandpass filters. Tecport Optics designs and manufactures custom vacuum coating systems engineered for high-precision thin film applications. Our IBS, magnetron sputtering and PAD platforms meet the exact requirements of your filter designs, whether you need narrowband precision or broadband throughput.
Reach out to us to discuss how our turnkey deposition systems can support your next optical filter production challenge.
