Small surface flaws can jeopardize complete production cycles in the field of high-precision optical coatings. Two of the most frequent defects engineers face during thin film deposition are nodule growth and pinholes. Identifying the fundamental origins of these imperfections is a critical prerequisite for their prevention.
Thin Film Deposition: What Are Pinholes and Nodules?
In high-precision optical coatings, pinholes represent microscopic gaps or voids that can occur within a coating layer. These defects may extend partially or entirely through the film stack and are frequently triggered by nucleation sites such as surface contaminants, trapped gases, or dust.
Conversely, nodular defects manifest as localized cone-shaped growths extending through the film layers. These typically develop when a contaminant particle on the chamber wall or substrate causes material to deposit preferentially around it, resulting in a raised bump with an internal shadowed void. Dislodging the nodule and its seed can produce a pinhole.
Several shared factors contribute to the formation of both defect types:
- Environmental, substrate, or fixture-based surface particulate contamination
- Particulate flaking or spalling from tooling and chamber walls due to pumpdown and venting turbulence
- Target arcing events within reactive sputtering
How Cleanroom Protocols Shape Final Yield
The cleanliness of the ambient chamber environment is key to preventing particulate contamination. During deposition, even a solitary particle exceeding 0.5 µm can trigger a defect that permeates every subsequent layer.
Systemic contamination control is essential, moving beyond simple cleaning to include comprehensive cleanroom conditions, including gowning, gloving, filtered airflow, and non-contaminating packaging protocols. To minimize touch-point risks, substrates should stay sealed until loading, utilizing standardized gloves, dedicated carriers, and fixtures that eliminate sliding contact.
Furthermore, chamber hardware management is critical. Elements like fixtures, shutters, and shields act as particle sources and should be cleaned appropriately. Establishing strict inspection criteria and procedures allows for cleaning or replacement before flaking contamination occurs, preventing defective production runs.
Reducing Surface Contamination via Ion Cleaning

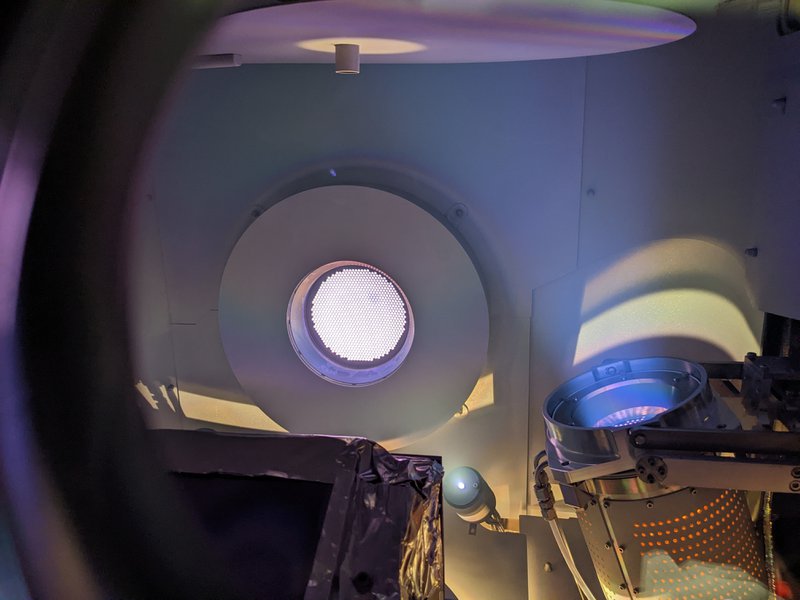

One of the most effective pre-deposition steps is ion cleaning of the substrate surface. Adsorbed water vapor and hydrocarbons from the lab environment are common surface contaminants. They reduce adhesion of any deposited film. Oxygen ion bombardment efficiently converts hydrocarbon contaminants to volatile compounds and desorbs them. Ion current density at the substrate surface and ion energy are optimized for this purpose.
An ion current density of approximately 1 mA·sec/cm² is typically adequate to clear this type of initial contamination. For continuing contamination, such as water vapor continuously desorbing from vacuum chamber walls during pumpdown, a low level of sustained ion bombardment through the early stages of deposition helps maintain a clean interface. Short wavelength UV irradiation is also effective for desorbing water from metal walls.
Beyond cleaning, ion bombardment during deposition improves film density, hardness, and can improve film density and help achieve the intended refractive index. It also helps control residual stress. These improvements reduce the likelihood that a film will develop pinholes from void formation or internal stress fractures over time.
Establishing Defect Feedback Loops via Monitoring and Inspection
Defect control and prevention require the establishment of a cleaning protocol. Visual and microscopic inspection after each run identifies whether defects are increasing in frequency or severity. Spectral analysis can reveal absorption or scatter signatures that point to specific process degradation, such as reactive sputtering arcing events.
Environmental testing to MIL-STD requirements can expose defect influences and systematic process changes that visual inspection alone would not catch.
Key process monitoring points include:
- Base pressure achieved before deposition starts (indicates chamber cleanliness and outgassing status)
- Pumpdown and venting rates
- Ion current density during pre-deposition cleaning steps, as required
- Arc detection and mitigation during reactive sputtering runs
- Record tooling, shield, and fixture surface cleaning and pre-loading inspection schedule
Partner With a System Builder Who Understands the Full Process
Eliminating pinholes and nodules involves maintaining chamber cleaning and cleanroom procedures, substrate handling, pre-deposition preparation, and in-process monitoring. The deposition system should be engineered to support each of these elements from the start.
Tecport Optics designs and builds custom thin film vacuum deposition systems specifically configured to your process requirements and production volume. Our systems support ion pre-cleaning, in situ monitoring, and chamber designs that minimize particle accumulation.
If you are troubleshooting yield losses or scaling a precision coating process, reach out to us to discuss how a purpose-built system can address the root causes at the hardware level.
