Reliable and consistent operation of a vacuum coating system is fundamentally tied to the health of its deposition sources. As the primary engines of any thin-film deposition setup, the ion source and electron beam gun require diligent upkeep to ensure high-quality coatings, consistent system availability, and effective cost management.
This guide outlines essential maintenance strategies tailored for lab technicians, managers and engineers responsible for these vital components.
The Critical Role of Maintenance for Deposition Sources
E-beam and ion beam sources operate under stressful conditions including high voltages and currents, intense heat, and oxidizing and high-vacuum environments. Wear and breakdown of components require periodic upkeep to sustain the production stream and protect your facility's coating system investment.
A proactive strategy is vital because neglected maintenance leads to compounding failures. Issues such as unstable and aborted coating runs. Premature component failure can often be avoided through scheduled maintenance.
System Health Maintenance Through Systematic Cleaning Procedures
High voltage arcing can occur in electron beam evaporation and sputter deposition equipment, and impose a risk to the quality of a coating run. This phenomenon is typically triggered by the buildup of an insulating material layer or sharp points on housing or gun assembly surfaces at which high voltage is maximized. These arc discharges can compromise coating runs by ejecting particulates and can lead to catastrophic component damage by imposing excessive stress on power supplies.
Periodically scheduled involving solvent and abrasive cleaning of exposed surfaces on e-guns and ion source electrodes is the primary defense against arcing, Steps include:

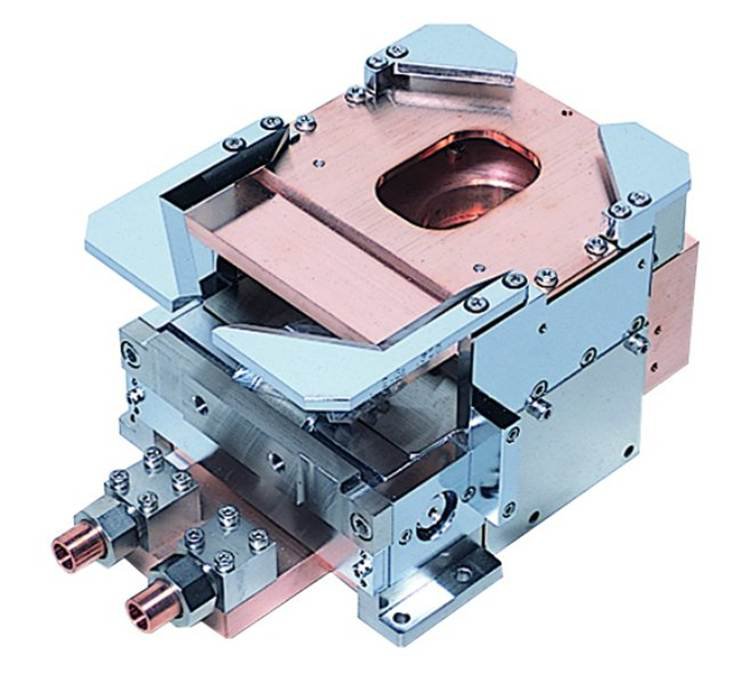

- Debris removal from the e-gun assembly. Use a vacuum cleaner and brush to dislodge and remove material from the pole piece, gun housing, and exposed areas. Accumulated residue is a leading cause of electrical discharge arcing.
- Ion Source Grid assembly care. Regularly extract and clean the grid assembly. Surface buildup compromises ion beam optics precision and elevates arcing risks. Inspect for excessive erosive wear.
- Maintenance of anodes. Inspect the anode for evaporated or sputtered material. Use isopropyl alcohol and lint-free cloths for effective cleaning.
- Neutralizer and ion source grids. Inspect for wear. Conduct scheduled cleaning of the neutralizer filament area and grids. Surface deposits in these zones often result in erratic beam performance.
Maintenance frequency is dictated by system workload volume throughput and the quantities of specific materials utilized. A procedure for periodic inspection and maintenance should be established.
Optimizing Filament and Insulator Functionality
At the core of every thermionic electron beam gun lies the filament, a vital consumable component. These filaments produce electrons via thermionic emission, a process requiring high temperature. High temperature causes evaporation of the filament and, in oxidizing environments, changes the malleability of the wire making it vulnerable to breaking. Periodic replacement is required to extend operational life. The same cautions apply to high voltage feed throughs.
Implementing specific operational practices can substantially prolong the service life of filaments:
- Incremental heating during startup. To avoid thermal shock, ramp up filament power gradually. Rapid fluctuations in temperature can lead to premature failure.
- Monitor operational hours. Maintain a log of runtime. Since filament breakdowns frequently occur in groups, schedule maintenance promptly once an initial failure is detected.
- Minimize peak power usage. Continuous operation at maximum capacity hastens component degradation. Stick to recommended settings to preserve integrity.
High-voltage insulator surfaces must be kept clean to avoid the likelihood of electrical breakdown. For minor buildup, employ dry cleaning techniques like compressed air or brushes; however, more significant contamination necessitates a comprehensive cleaning regimen.
Reliable voltage isolation requires insulators to be free of deposits, discharge traces, and cracks. Regularly examine all surfaces for these issues and immediately replace any components that exhibit visible damage.
Logs and Inspection Protocol
The success of any maintenance strategy depends on the quality of its documentation. Maintain a detailed log for every cleaning, inspection, and component swap, noting the date and specific actions taken. This data is essential for spotting trends; for instance, the log can highlight if arcing occurrences correlate with specific operational durations.
To ensure the system remains reliable, adhere to these routine checks:
- Schedule Periodic Calibrations. Conduct yearly checks to ensure beam parameters stay within their required tolerances.
- Electrical Integrity Verification. Use a multimeter during every maintenance session to inspect wiring for degradation or loose connections, preventing sudden failures.
- Inventory Management. Stock critical spares like grid components, insulators, and filaments. Proper inventory ensures that repairs take only hours rather than weeks.
Safety Protocols for System Maintenance
When performing maintenance on ion sources and electron beam guns, safety must be the primary consideration due to the presence of high-voltage components.
Before interacting with any gun components, ensure the system is powered down and all circuit breakers are switched off. In cases where a single chamber is linked to multiple guns, every related power supply must be deactivated. It is also critical to permit all parts to cool completely; the anode and grid assembly, in particular, can remain hot for a significant period after the system is shut off.
To maintain beam path integrity and coating uniformity when working around e-beam sources, utilize non-magnetic tools to avoid distorting the beam. Additionally, always wear clean gloves when handling grid components and filaments, as skin oils can contaminate the vacuum environment.
