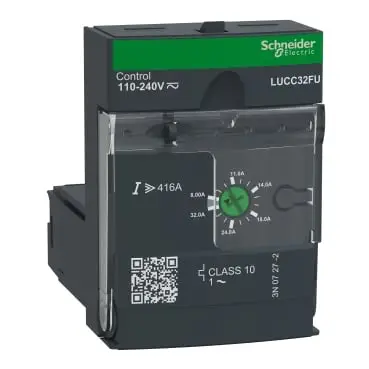

The TeSys U Control and Diagnostic Unit for Advanced Power Bases enhances your motor control and protection capabilities with TeSys U Control and Diagnostic Unit, designed specifically for integration with our advanced power bases LUB320 and LUB380. When combined, they create a powerful TeSys U Starter Controller, ideal for 1-phase motor applications up to 7.5kW at 400V.
The TeSys U unit offers comprehensive motor protection features, ensuring the safe and reliable operation of motors within a rated current range of 8-32A (adjustable). It includes overload tripping with a class 10 response, and providing reliable and timely protection. In case of a short circuit, it activates at 13 times the maximum rated current (Irmax), while overcurrent protection triggers at 14.2 times Ir. The unit also safeguards against phase loss and provides insulation fault protection for connected equipment.
For effective diagnostics, the TeSys U unit incorporates a thermal overload alarm, which can be managed with an additional function module (to be ordered separately). This feature allows you to monitor and respond promptly to thermal overload conditions. Furthermore, a convenient test push button enables overload simulation for testing purposes.
The TeSys U Control and Diagnostic Unit operates with a versatile voltage range of 110-240V AC / 110-220V DC, enabling seamless control of the starter. Simply connect it to the control terminals A1/A2 located in the power base for effortless integration. Rest assured, the unit is certified to meet international standards when used in conjunction with a LUB power base, including IEC, UL, CSA, CCC, EAC, and Marine certifications. It is also compliant with Green Premium standards, ensuring its adherence to RoHS and REACh regulations.
Upgrade your motor control capabilities with the TeSys U Control and Diagnostic Unit, and experience enhanced motor protection, reliable diagnostics, and seamless integration within your power system. Order now and unlock the full potential of your motor applications.
